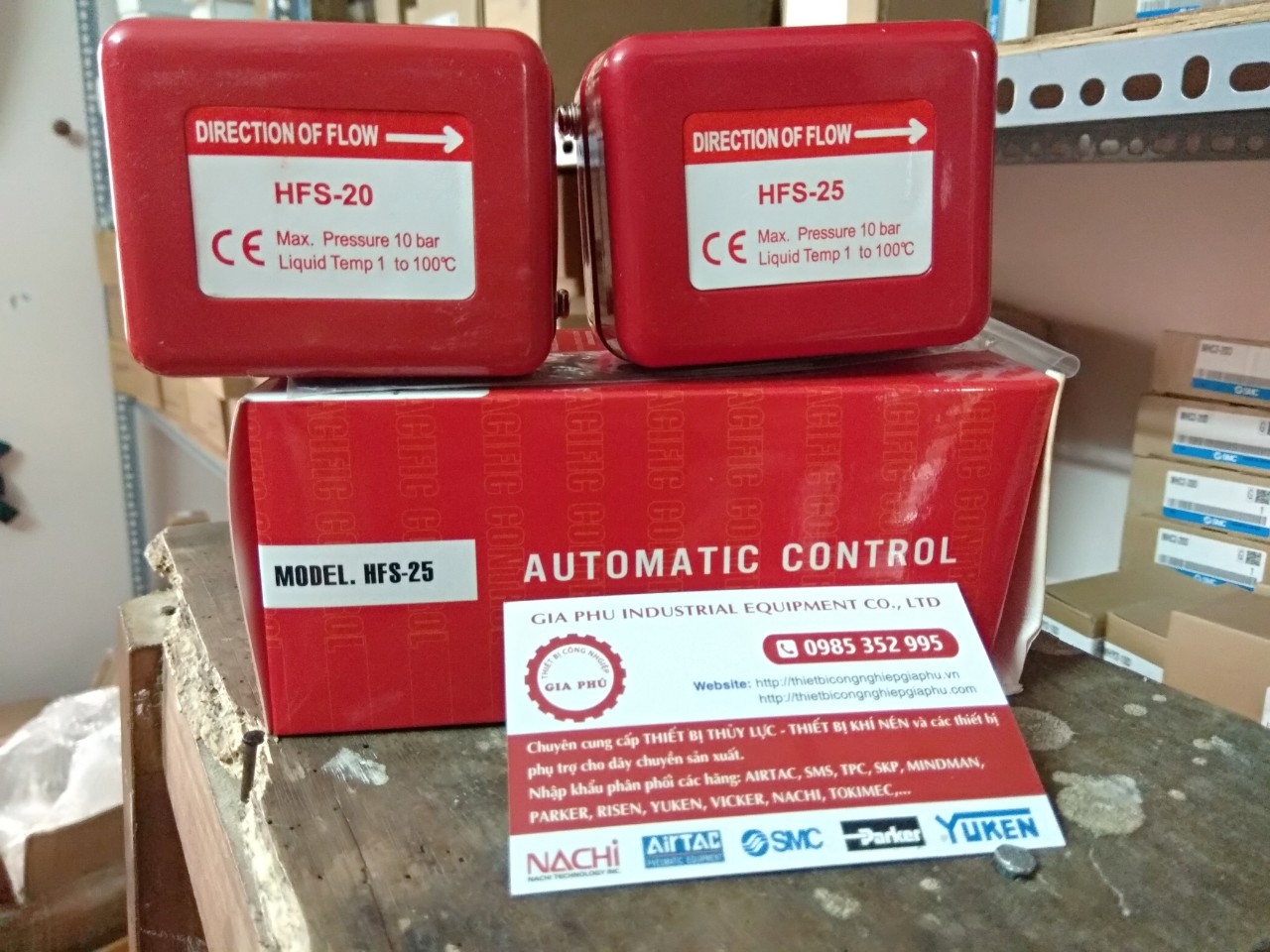

công tắc dòng chảy hfs-20 hfs-25

Tình trạng: Còn hàng
Mua ít nhất: 5 sản phẩm
Ngày đăng: 10/01/2021
Khu vực: Toàn quốc

Giá: "Liên hệ"

Liên hệ: 0941999191

Chú ý: Chợ Cơ Khí không bán hàng trực tiếp, Quý khách mua hàng xin vui lòng liên hệ nhà cung cấp

Sản phẩm được bán bởi:

CÔNG TY TNHH THIẾT BỊ CÔNG NGHIỆP GIA PHÚ

Bơm Công Nghiệp - Toàn quốc

299 sản phẩm

GIÁC HÚT ZP PHI 6/8/10/13/16/20/25/32/40/50

Theo dõi

Thông tin sản phẩm

HFS series water flow switch (fine quality high sensitivity)

1. Application of water flow switch:
The HFS series water flow switch produced by our company is mainly used in water treatment systems, central air conditioners, water-cooled units, etc. It is suitable for water, ethylene glycol and any other non-corrosive effects on brass and phosphor bronze. A liquid that has no effect on the sealing performance.
2. Working principle of water flow switch:
When the flow rate exceeds the set value, the fluid pushes the paddle, and the micro-switch on the top is driven by the mechanical device in the flow switch. The single-pole double-throw switch contact (SPDT) can make one loop conduct. At the same time, cut off another circuit. The flow switch is usually used in places where interlocking or "breaking" protection is required. The number of paddles and the length of the paddle can be adjusted to suit different pipe diameters and flow rates.

2. Overview:

The HFS series water flow switch has SPDT output, excellent performance and high precision reliability. It can be installed in water pipes or liquid pipes that are non-corrosive to copper. When the liquid flow reaches a certain rate, it can be less than the rated point, one of the circuits is closed, and the other circuit is open.
HFS water flow switch is only used for liquid medium above 0 °C, and can also be used for high salt liquid, but not for dangerous liquid.
The HFS water flow switch can be installed outdoors and can be installed horizontally or vertically in the pipeline.
The HFS water flow switch is only used for operational control. It is necessary to strengthen the responsibility of the installer and the limit control and alarm monitoring system to prevent the occurrence of control failure.
Note: The flow switch cannot be hit by water. If a quick closing valve is installed downstream of the flow switch, a restrictor must be used.

3. Product Features:

Shell protection class: IP54 Output form: Micro switch SPDT output

Contact life: 100,000 times Use medium temperature range: -10 ~ 105 °C
Working medium: air, water and oil Micro switch parameters: 5A (max.), 250VAC / DC)
Maximum pressure: 15bar, Material: Housing Brass or stainless steel, the baffle is made of stainless steel

4 , specifications and models:

model	Connection size	Number of streams	Factory setting (N)		Airtight test pressure (Mpa)		Remarks
			Cut off min	Turn on Max	Airtight test pressure (Mpa)
			Cut off min	Turn on Max	Max	Min
HFS-10	G3/8 "-19 teeth	Fixed piece of pulp	0.5	1.5	1.6	1.0	Original copper valve body
HFS-15	G1/2 "-14 teeth	Fixed piece of pulp	0.5	1.5	1.6	1.0	Original copper valve body
HFS-20	G3/4 "-14 teeth	Fixed piece of pulp	0.5	1.5	1.6	1.0	Original copper valve body
HFS-25	G1 "-11 teeth	Fixed piece of pulp	0.5	1.5	1.6	1.0	Original copper valve body
