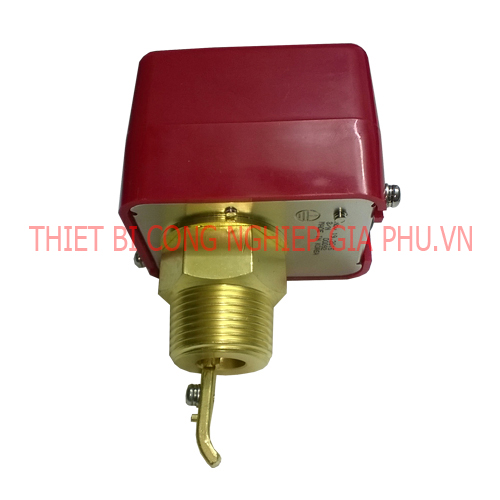

công tắc dòng chảy hfs-20
- Tình trạng: Còn hàng
- Mua ít nhất: 5 sản phẩm
- Ngày đăng: 10/01/2021
- Khu vực: Toàn quốc
Giá: "Liên hệ"
Chú ý: Chợ Cơ Khí không bán hàng trực tiếp, Quý khách mua hàng xin vui lòng liên hệ nhà cung cấp
Sản phẩm được bán bởi:
Thông tin sản phẩm
FLOW SWITCH
công tắc dòng chảy HFS-15, công tắc dòng chảy HFS-20, công tắc dòng chảy HFS-25, Flow switch HFS-15, flow switch HFS-20, công tắc dòng chảy hàn quốc HFS-25
FEATURES
- The paddle type SPDT HFS series are designed to provide excellent performance where accuracy, reliability, and rugged constructiuon are
required in liquid flow lines carrying water for any fiuid neither harmful to brass and prosphor bronze nor classified as a hazaardous fluids.
- They can be wired to close one circuit and open the other circuit when liquid flow either exceeds or drops below the adjusted flow rate.
- The HFS series are recommended for liquid pressure and temperature as mentioned below and must not be used on fluid bellow 0℃
- These series may be used on liquids with high salt or chlorine content but is not for use in hazardous atmospheres.
- Flow switches are designed for use only as operating controls.
- Since control failure can cause personal injury or property damage, users should use the monitoring system to alert control failure or the safety equipment.
|
|
|
DIMENSION
|
MODEL |
A |
B |
C |
D |
CONNECTION |
L1 |
L2 |
L3 |
W |
|
HFS-15 |
79 |
64 |
93 |
56 |
R 1/2"(PT 1/2") |
50 |
43 |
- |
28 |
|
HFS-20 |
79 |
64 |
93 |
56 |
R 3/4" (PT 3/4") |
50 |
43 |
40 |
28 |
|
HFS-25 |
79 |
64 |
93 |
56 |
R 1" (PT 1") |
89 |
59 |
35 |
28 |
SPECIFICATION
|
OPERATING PRESSURE |
1.0 MPa (10bar) |
|
WITHSTANDING PRESSURE |
1.75 MPa (17.5bar) |
|
INSULATION RESISTANCE |
Over 100Ω (DC 500Vm) |
|
WITHSTANDING VOLTAGE |
AC 1500V / Min |
|
CONTACT POINT LIFE |
1000K Cycle |
|
BELLOWS LIFE |
500K Cycle |
|
TEMPERATURE of FLUID |
Max. 100℃ (212 ℉) |
ELECTRICAL FUNCTION
|
RATED AMPS. (A) |
VOLTAGE |
RESISTANCE |
LAMP LOAD |
MOTOR LOAD |
|
AC |
AC 125V |
5A |
44A |
5A |
|
AC 250V |
2.5A |
22A |
2.5A |
|
|
DC |
DC 115V |
0.3A |
- |
- |
|
DC 230V |
0.15A |
- |
- |
INDIVIDUAL SPECIFICATION
|
BASIC OPTIONAL |
CLASSIFICATION |
FLOW CONTROL RANGE (LPM) |
||||
|
PIPE DIAMETER mm (inch) |
PADDLE |
MINIMUM |
MAXIMUM |
|||
|
ON-FLOW |
OFF-FLOW |
ON-FLOW |
OFF-FLOW |
|||
|
STANDARD |
25.4 (1") |
|
15 |
8 |
45 |
41 |
|
31.7 (1"1/4) |
1 |
26 |
13 |
75 |
68 |
|
|
38.1 (1"1/2) |
|
29 |
20 |
105 |
94 |
|
|
50.8 (2") |
2 |
34 |
17 |
120 |
105 |
|
|
63.5 (2"1/2) |
|
60 |
34 |
210 |
188 |
|
|
76.2 (3") |
3 |
68 |
30 |
288 |
275 |
|
|
101.6 (4") |
|
128 |
65 |
412 |
360 |
|
|
121.0 (5") |
|
225 |
113 |
750 |
652 |
|
|
152.4 (6") |
|
346 |
172 |
1125 |
975 |
|
|
|
|
|
|
|
|
|
 |
